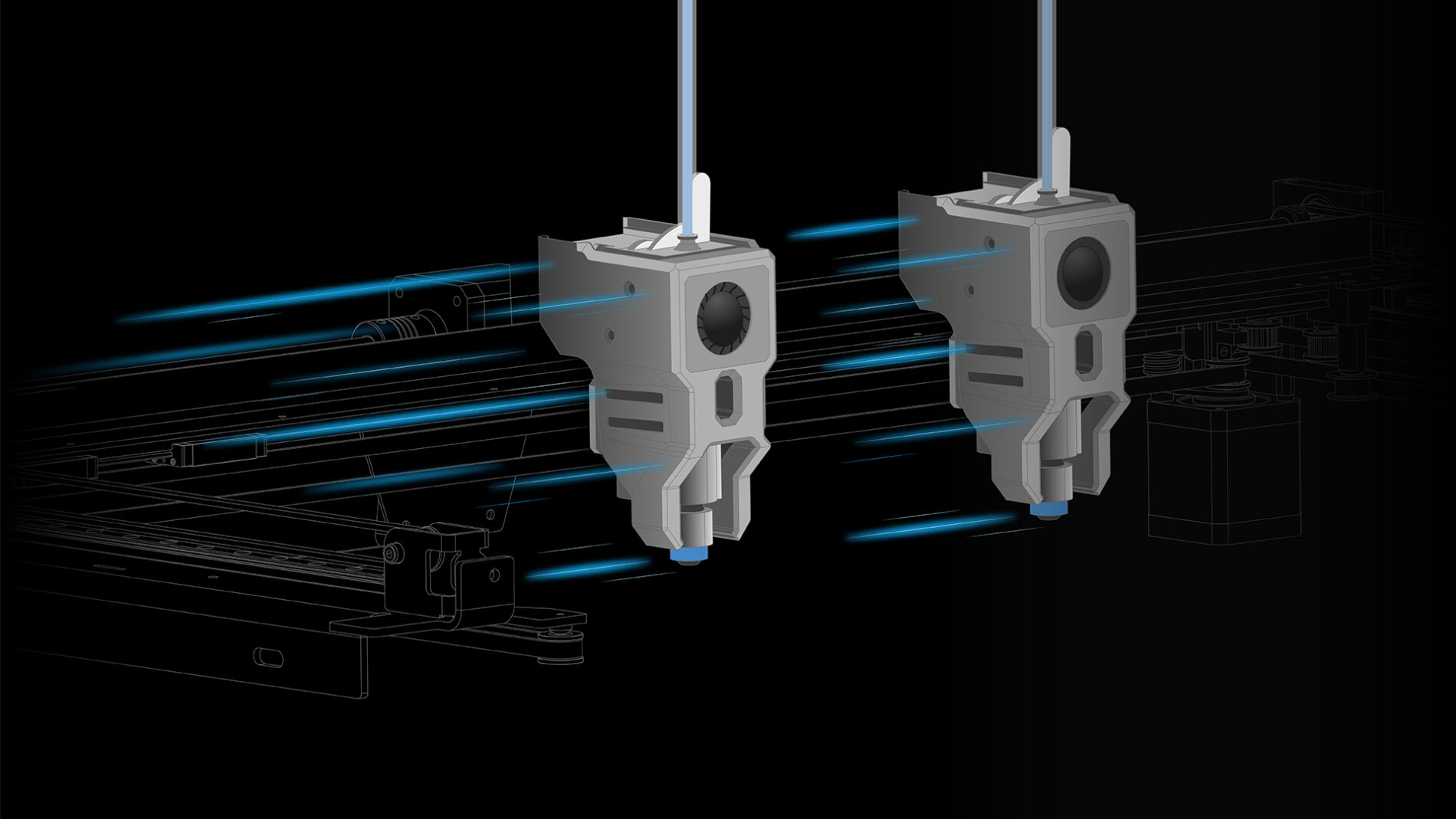

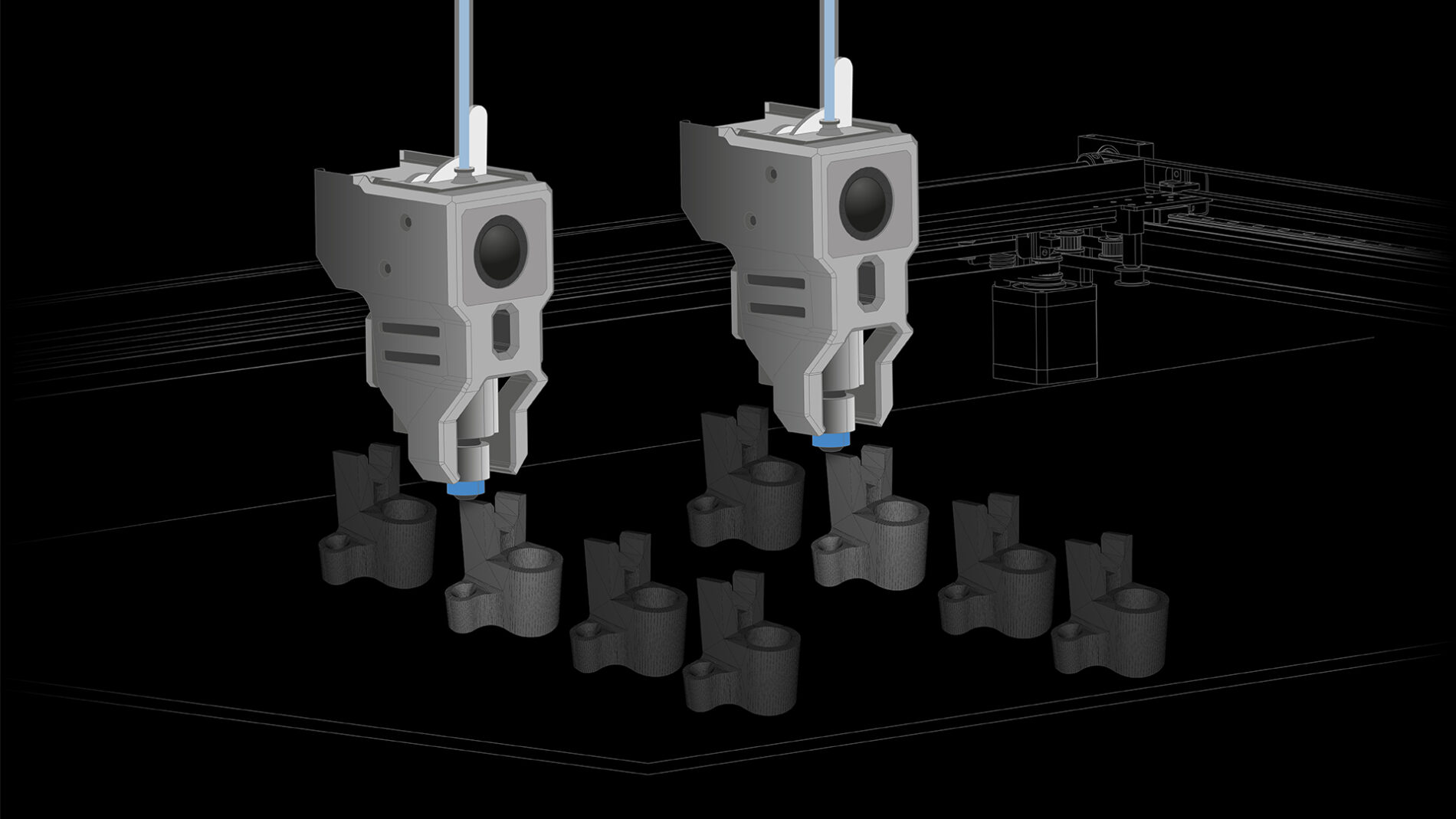

IDEX Technology
Double your productivity by using both toolheads simultaneously.

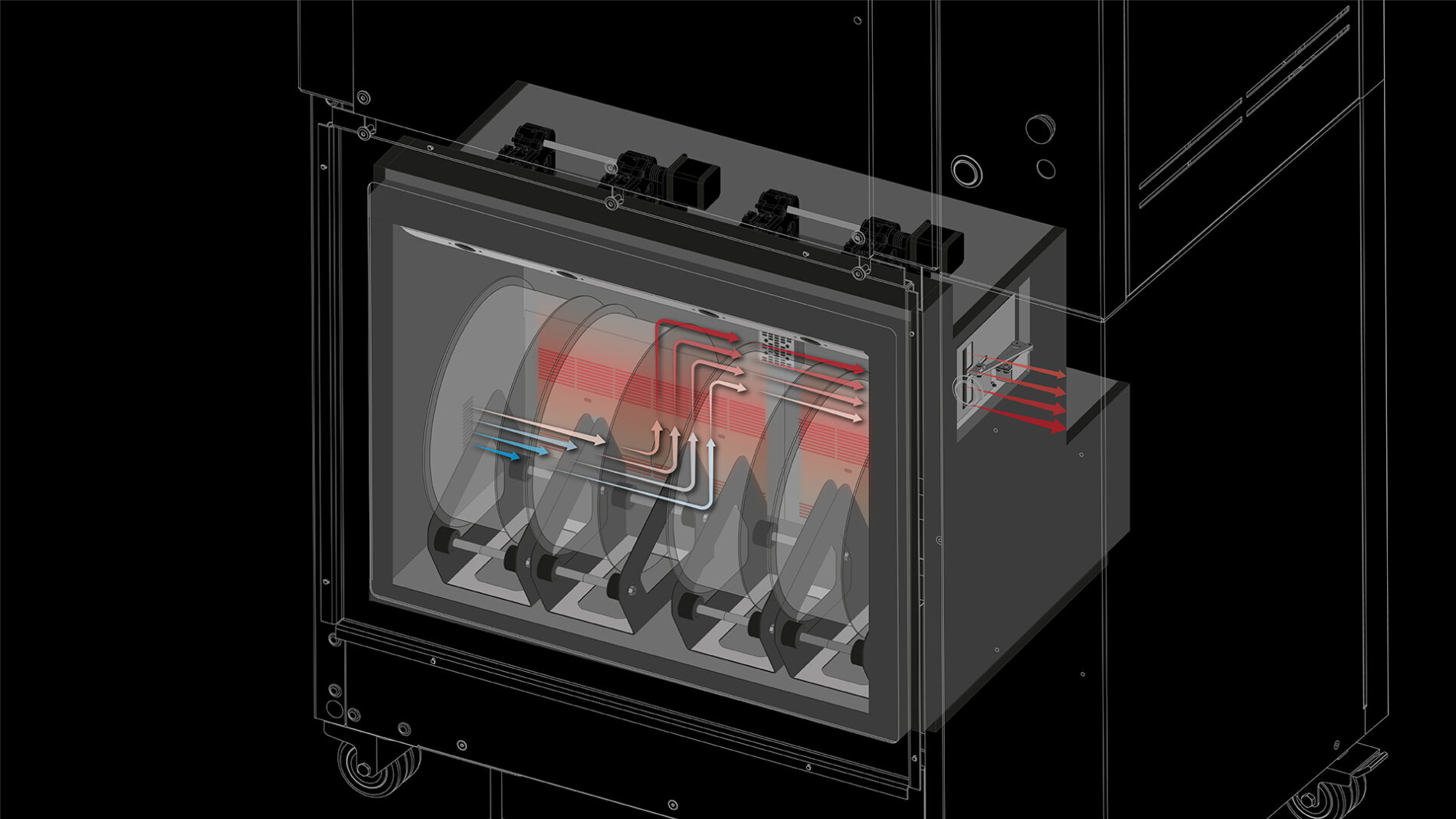

Material Operations System
Integrated temperature and humidity-controlled system that prepares filaments for printing.

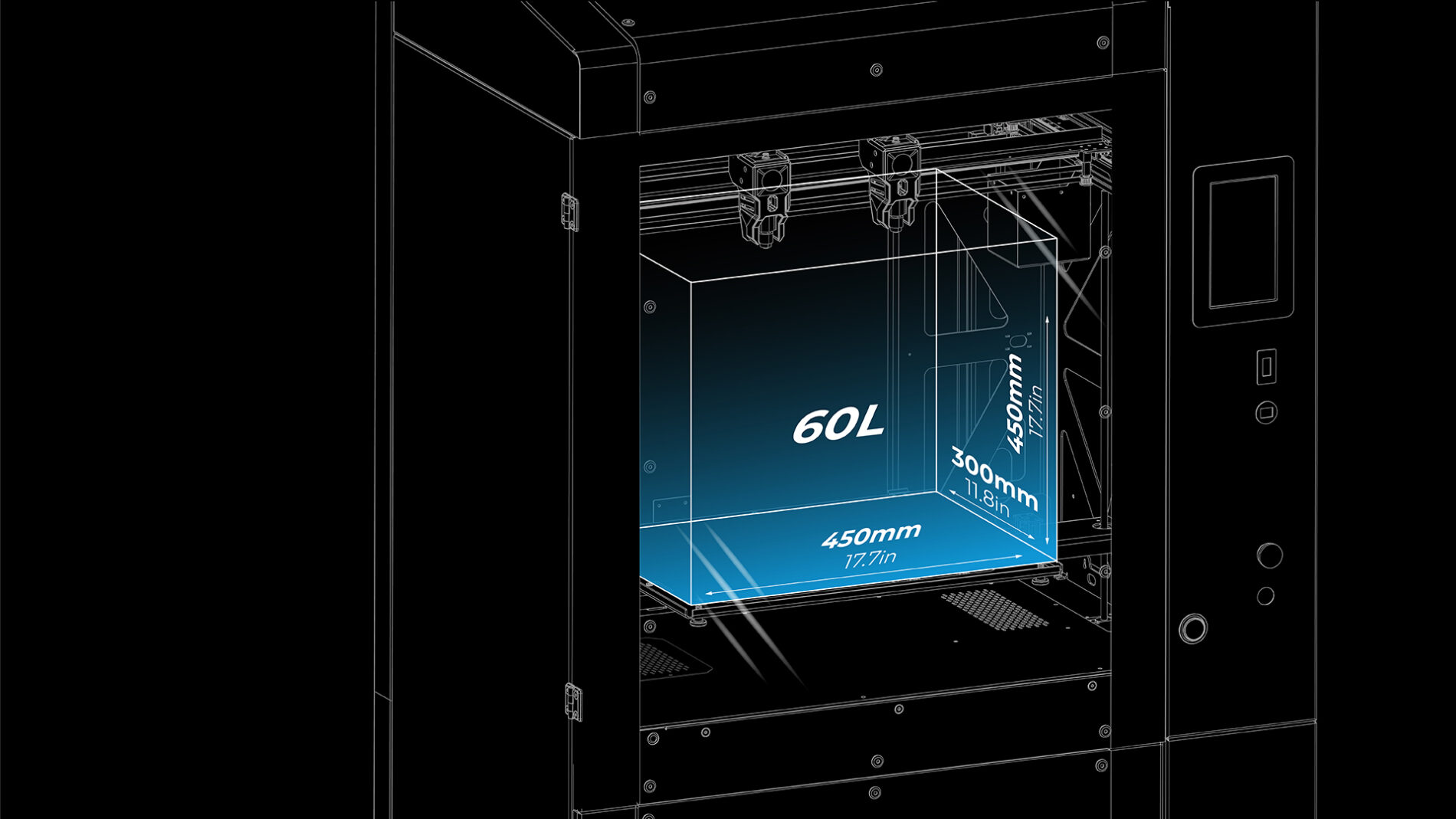

Massive Print Volume of 60 Liters
Double your productivity by using both toolheads simultaneously.
Built for the factory floor

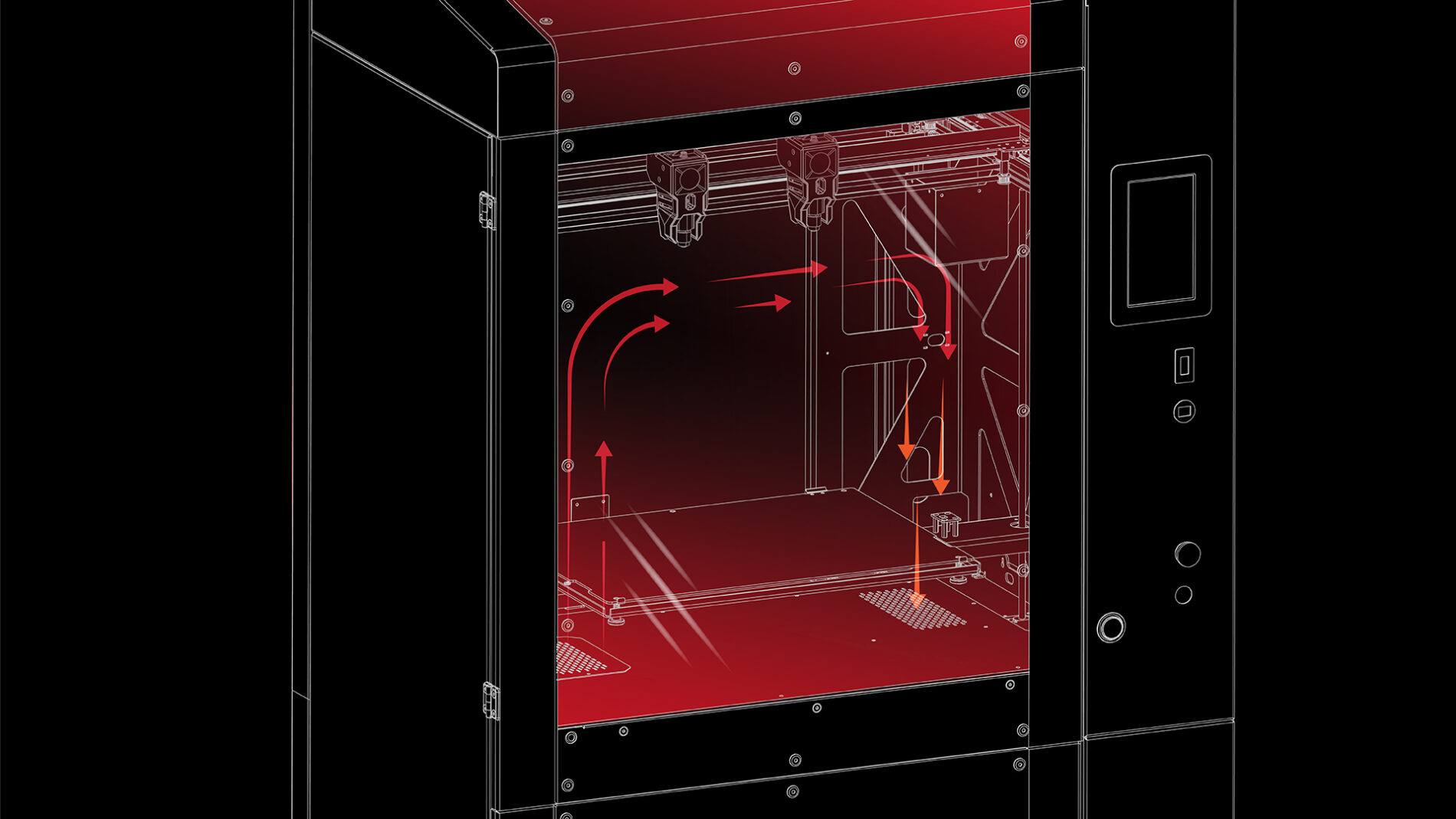

Active Heated Chamber up to 70ºC (158 ºF)
Control chamber temperature for part uniformity, dimensional accuracy, and mechanical properties.

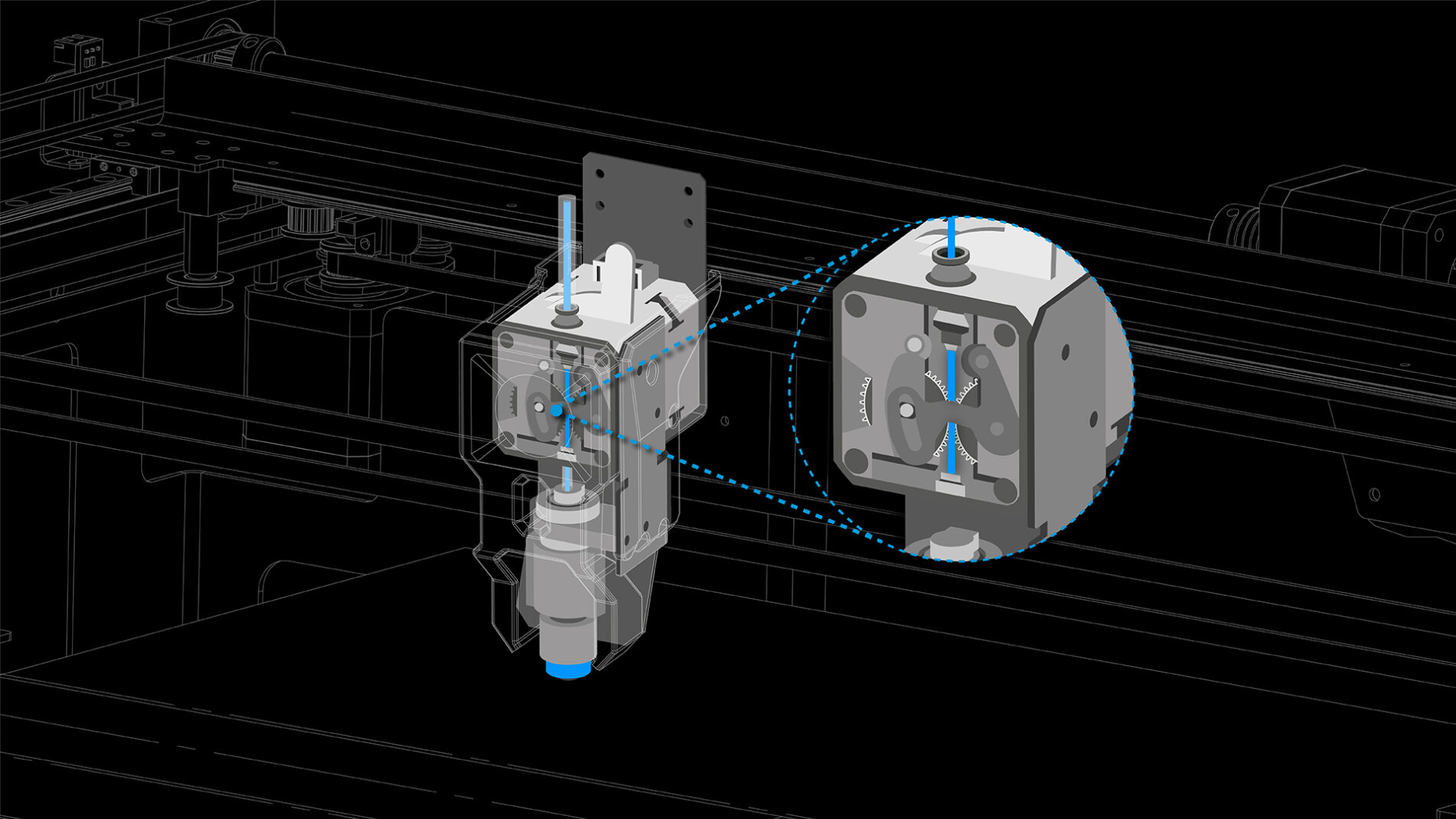

Powerful Extrusion System
1.75mm direct-drive Bondtech extruder and easy-swap nozzle change.

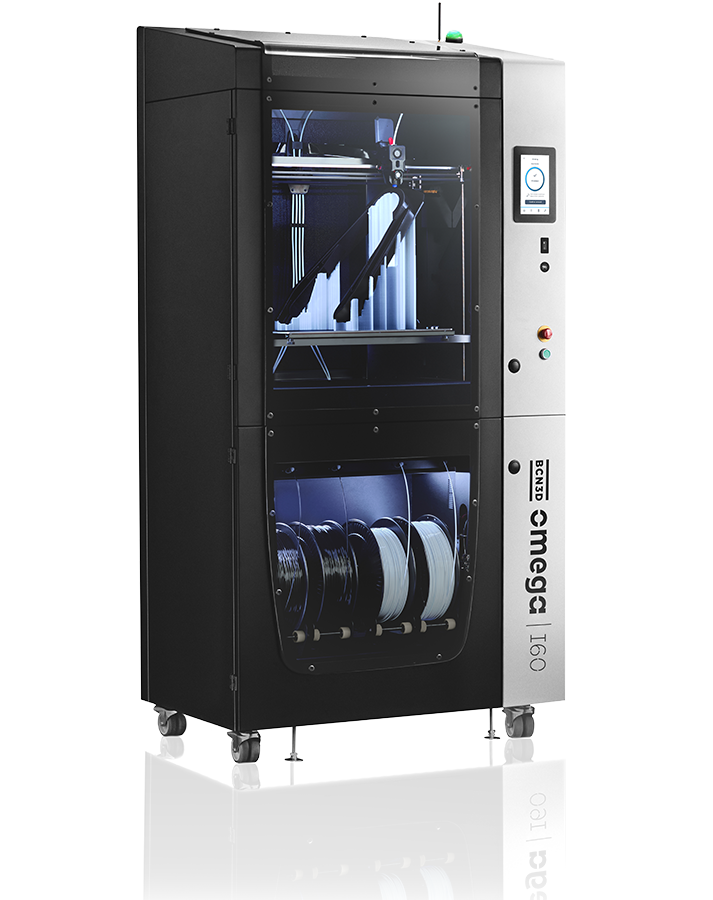

BCN3D OMEGA I60
BCN3D Omega I60 is an industrial FFF 3D printer built for the factory floor designed specifically to produce large-scale, strong tooling, jigs, and fixtures. It features BCN3D’s signature IDEX technology, a massive print volume of 60L, a heated chamber of 70ºC, a temperature and humidity-controlled material operations system, and a direct-drive high-speed extruder.
Are you considering a BCN3D Omega I60?
Get a customized quote
Watch BCN3D Omega I60
make its debut
A glimpse into BCN3D Omega I60’s specifications
A heated chamber facilitates the manufacturing of engineering polymers by maintaining an ideal temperature for the printable part throughout the printing process. This temperature control ensures the uniform construction of the part, minimizing the formation of internal stresses. Heating the chamber promotes relaxation and eliminates internal tensions during manufacturing, effectively preventing issues like warping and cracking. All of this ensures the best dimensional accuracy and mechanical durability for the printed part. The BCN3D Omega I60 heated chamber can reach temperatures of up to 70ºC (158 ºF), making it ideal for printing materials such as ASA, PA, ABS and reinforced PA, among others.
Wondering how the Omega I60 heated chamber performs over a print job? Check out this informative article.

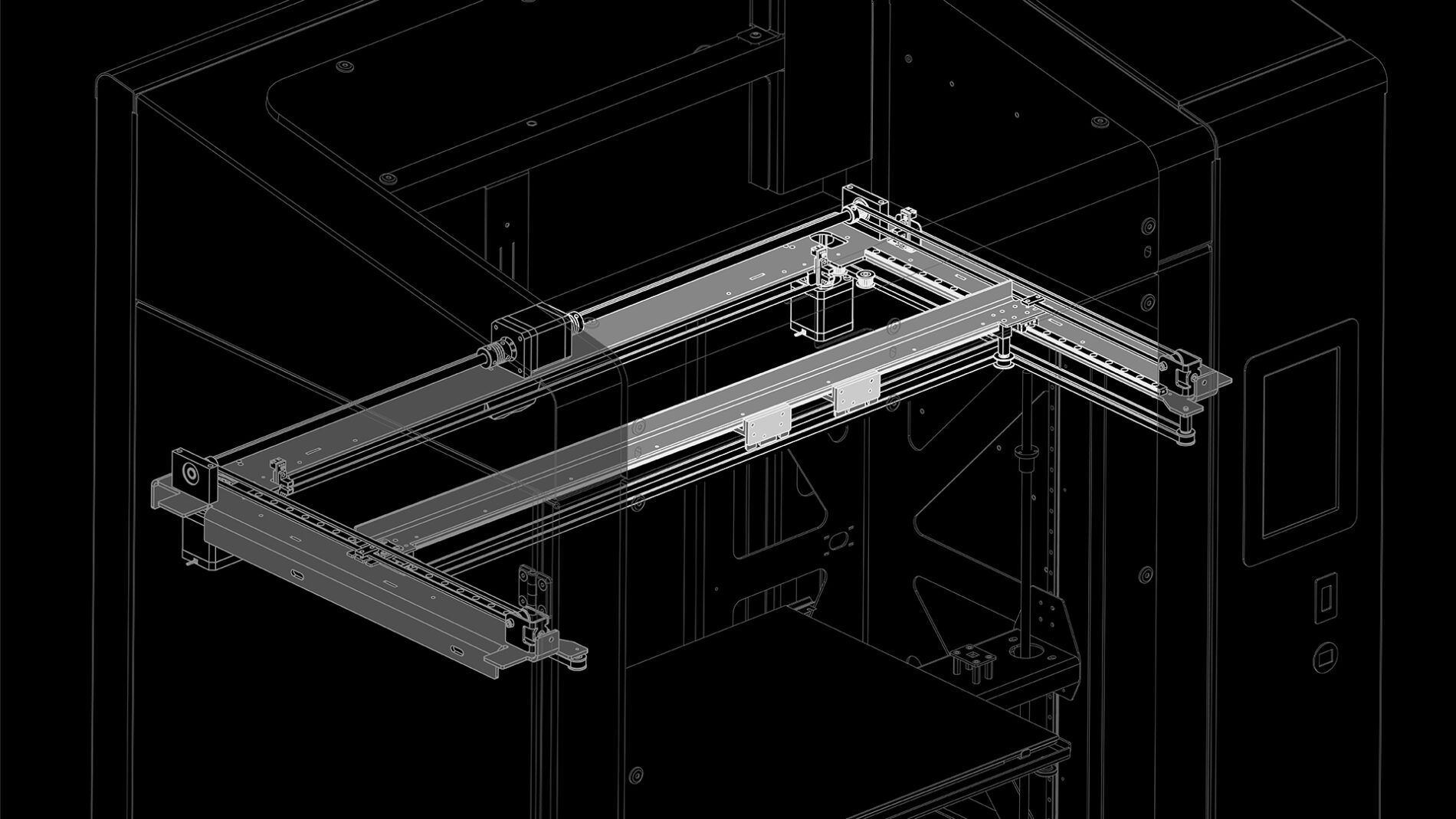

BCN3D Omega I60 utilizes a custom HAQ-XY Kinematics system. This motion architecture is considered one of the best systems for dual 3D printers and CNC machines, as it provides a lightweight, robust and precise approach. BCN3D Omega I60 equips an improved version of this kinematics by placing the pulleys in a slightly different position. As a result, the system experiences a significant reduction in twisting moments along the X axis during the printing process. These twisting moments are highly undesirable as they can have detrimental effects on the system's performance and potentially lead to deformations in the X axis, thereby negatively impacting the quality of the printed parts.
BCN3D Filaments
Ø 1,75 mm
The new Omega BCN3D Filaments have been specially formulated to ensure the best printing performance and repeatability when used with a BCN3D Omega I60.
Proto
Great surface finish Well-rounded properties strong layer bonding
Resistant Nylon
High chemical resistance self lubricating properties Extreme durability
Tooling CF
Strong, durable and stiff Exceptional HDT (177'C) High dimensional stability
Impact ABS
Impact resistant Heat resistance up to 90'c Great surface finish
